MartyGrass Posted October 16, 2011 Share Posted October 16, 2011 The top shows the neck pocket of a LP Standard. I'm told reflects the current production. The pocket is not hand fitted to the neck like in the old way (lower image). The neck can rock in the pocket, making assembly and neck angle adjustment easier. When I saw how the Standards are made, it really shocked me. We discuss whether a long tenon matters on the HOC. But how about rocker fit? It looks like there is minimal neck-to-body contact. That can't be good. Maybe none of this matters Comments? Link to comment Share on other sites More sharing options...
Hfan Posted October 16, 2011 Share Posted October 16, 2011 Could be good for whammy effects. You could grab and pull and push the head stock while a note sustains. Seriously, this is what they are doing?? Someone should post this on the LP forum. I'm not brave enough. Link to comment Share on other sites More sharing options...
Hfan Posted October 16, 2011 Share Posted October 16, 2011 Also, whats with the extra neck layers on the one with the rocker tenon? Link to comment Share on other sites More sharing options...
MartyGrass Posted October 16, 2011 Author Share Posted October 16, 2011 Also, whats with the extra neck layers on the one with the rocker tenon? That looks like the cover of the truss rod canal. Link to comment Share on other sites More sharing options...
barrymclark Posted October 16, 2011 Share Posted October 16, 2011 Wow... that is awful. I hope this isn't all that widespread or that it stops soon. Link to comment Share on other sites More sharing options...
Genericmusic Posted October 16, 2011 Share Posted October 16, 2011 Heritage, when Gibson is not good enough. Long live Parson St. ! Link to comment Share on other sites More sharing options...
bolero Posted October 16, 2011 Share Posted October 16, 2011 that pic has been around forever, in fact the first place I saw it was the LPF few years ago I think it was marketing for the historics, I don't think the standards etc really have that much gap in there, it's just a shorter tenon Link to comment Share on other sites More sharing options...
MartyGrass Posted October 16, 2011 Author Share Posted October 16, 2011 I pulled this from the LPF from 2007. I didn't see anyone refute that Standards are made with a "roller method" in the neck pocket. I certainly don't know. Link to comment Share on other sites More sharing options...
602a Posted October 16, 2011 Share Posted October 16, 2011 I keep telling ya'll "The Longer Tenon, The Happier The Girl Sounds" Yea Baby. Link to comment Share on other sites More sharing options...
FredZepp Posted October 16, 2011 Share Posted October 16, 2011 I think it's the wood itself that is more important... I've got bolt on neck guitars that I love the sound of, for example... I'm not sure to what degree that they use the roller tenon,so I can't say about that. But pics taken from the top look like a short tenon would glue up to be quite strong. It's cutaway pics from the side that show a bit of a gap. Link to comment Share on other sites More sharing options...
DetroitBlues Posted October 16, 2011 Share Posted October 16, 2011 Wow, someone spent a lot of money to show us these examples... and I thought my refinish job was not for the faint of heart! Link to comment Share on other sites More sharing options...
hinesarchtop Posted October 17, 2011 Share Posted October 17, 2011 The extra layer that Hfan mentioned is called a fillet. they are usually made of hard maple and as martygrass stated, they go in the truss rod channel, and hold the rod in place. The rocker tenon is a miserable idea for a lot of reasons. Variable neck angle? Have you noticed that the ones with a shallower neck angle feel better? Love the rocker tenon whammy idea! Maybe a new fangled B bender too. Link to comment Share on other sites More sharing options...
tbonesullivan Posted October 17, 2011 Share Posted October 17, 2011 This is the picture I remember floating around a few years back: The rocker tenon was basically made to make fitting the neck faster. I don't know if they still use the rocker tenon, as the partial machine-made Gibson USA models probably don't need them anymore. most of the strength in the neck joints seems to come from the glue on the sides, with the shape tenon that gibson uses. It is narrow and fits into a slot. Other makers like Hamer, PRS, use a much wider tenon, that is also shorter. Link to comment Share on other sites More sharing options...
bolero Posted October 17, 2011 Share Posted October 17, 2011 interesting thing about fender gtrs is the butt end of the neck always has full contact with the body even with a long tenon the G/H style never makes 100% contact like that except maybe a firebird, heh I'd like to see a LP style neck joint that has the contact surface of a fender style neck although apparently the much frowned upon "lag bolt" attachment of a fender has superior surface to surface contact strenglth, than glue maybe the ideal neck joint is a bolted + hide glued, hybrid of the G & F styles Link to comment Share on other sites More sharing options...
DetroitBlues Posted October 18, 2011 Share Posted October 18, 2011 interesting thing about fender gtrs is the butt end of the neck always has full contact with the body even with a long tenon the G/H style never makes 100% contact like that except maybe a firebird, heh I'd like to see a LP style neck joint that has the contact surface of a fender style neck although apparently the much frowned upon "lag bolt" attachment of a fender has superior surface to surface contact strenglth, than glue maybe the ideal neck joint is a bolted + hide glued, hybrid of the G & F styles But its not a solid flush connection. Fender usually has router holes on the corners, its not perfectly square. Link to comment Share on other sites More sharing options...
bolero Posted October 18, 2011 Share Posted October 18, 2011 that's true, but most of the neck face has contact I guess there is a lolt of variation there too, but ideally it's pretty flush. I know my G&L has pretty much full contact there ....argh darned java is screwed up again Link to comment Share on other sites More sharing options...
hinesarchtop Posted October 19, 2011 Share Posted October 19, 2011 When I make LP style guitars with a long tenon the neck is carefully fit so there is maximum contact, but I'm not in a hurry. Link to comment Share on other sites More sharing options...
smurph1 Posted October 19, 2011 Share Posted October 19, 2011 Heritage, when Gibson is not good enough. Long live Parson St. ! Holy Crap!! +1 zillion Link to comment Share on other sites More sharing options...
smurph1 Posted October 19, 2011 Share Posted October 19, 2011 interesting thing about fender gtrs is the butt end of the neck always has full contact with the body even with a long tenon the G/H style never makes 100% contact like that except maybe a firebird, heh I'd like to see a LP style neck joint that has the contact surface of a fender style neck although apparently the much frowned upon "lag bolt" attachment of a fender has superior surface to surface contact strenglth, than glue maybe the ideal neck joint is a bolted + hide glued, hybrid of the G & F styles Hmmm..Might be.. Link to comment Share on other sites More sharing options...
602a Posted October 19, 2011 Share Posted October 19, 2011 Here's a 57 VOS Long tenon See how well it's set and glued. Now wonder why so many necks on these body styles get broken? Link to comment Share on other sites More sharing options...
bolero Posted October 21, 2011 Share Posted October 21, 2011 Hmmm..Might be.. yup..in fact, I'm going to install some lag bolts on my H150 right now, just to see! I'm sure it will sustain forever, and be buttery smooth....parisian walkways never sounded so good Link to comment Share on other sites More sharing options...

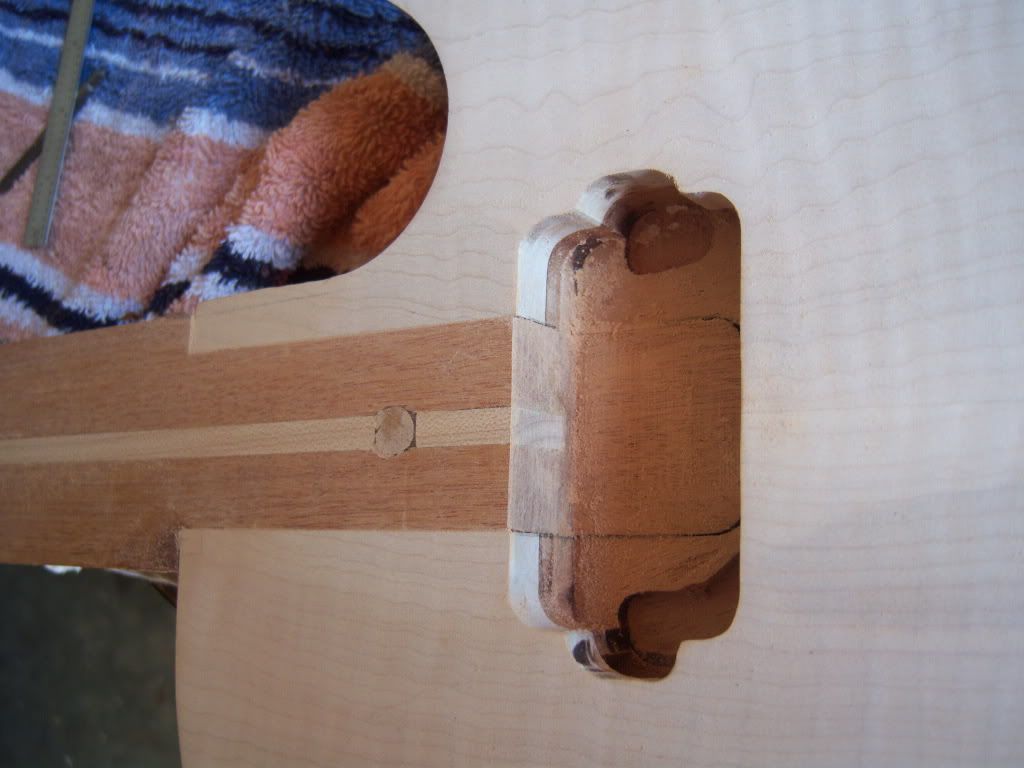

hinesarchtop Posted October 22, 2011 Share Posted October 22, 2011 Here's a shot of one I'm building with an extra long tenon. It goes almost to the end of the pickup cavity. Link to comment Share on other sites More sharing options...
bolero Posted October 22, 2011 Share Posted October 22, 2011 wow, that looks very nice!! what finish are you thinking of doing? is it for you, or a client? Link to comment Share on other sites More sharing options...
hinesarchtop Posted October 22, 2011 Share Posted October 22, 2011 This ones for a client and it's being sprayed like the one of page 110 from the beauty of the burst book. Very similar to what Heritage calls VSB, but with a bit more brown. Check out the pics on the family tree about Lpaul style build. Link to comment Share on other sites More sharing options...
Trouble Posted October 24, 2011 Share Posted October 24, 2011 that's true, but most of the neck face has contact I guess there is a lolt of variation there too, but ideally it's pretty flush. I know my G&L has pretty much full contact there ....argh darned java is screwed up again I've actually seen some fender neck heels and pockets that were fit so poorly the had to be shimmed. The thing is though, that doesn't always equate to a bad playing/sounding guitar. I have also seen strat bodies with tele necks installed that played and sounded very good, and tele bodies with strat necks installed that played and sounded very good. At least as far as older instruments, tele's had a square pocket and neck heel and strats had a rounded (slightly) pocket and heel. Which meant that in the case of the tele with the strat neck, there was a very sloppy fit with gaps at the corners of the neck to body area. The strat pocket must be squared off to accept the tele neck which actually isn't a bad fit, but if you take out too much of the pocket a shim will be needed to keep the scale length right and position the neck without a gap. shims are quite often made out of a soft wood like pine or even balsa, because it is easy to shape, and still may well be a great sounding guitar. While I would prefer not to have any of these things on a guitar I own, if I had a great guitar and opened it up to find a crappy joint or shims, would it then cease to be a great guitar? I personally think the end result is what is most important, and not what it took to get there. Link to comment Share on other sites More sharing options...
