High Flying Bird Posted September 27, 2013 Posted September 27, 2013 Anybody here that can post a diagram for coil tapping Schallers? I would appreciate it.
big bob Posted September 27, 2013 Posted September 27, 2013 Anybody here that can post a diagram for coil tapping Schallers? I would appreciate it. More info needed. What type of switching?
High Flying Bird Posted September 27, 2013 Author Posted September 27, 2013 What type of switching? I have no idea. My buddy has an Epiphone with push pull volume pots. We want to have the pups changed out for Schallers.

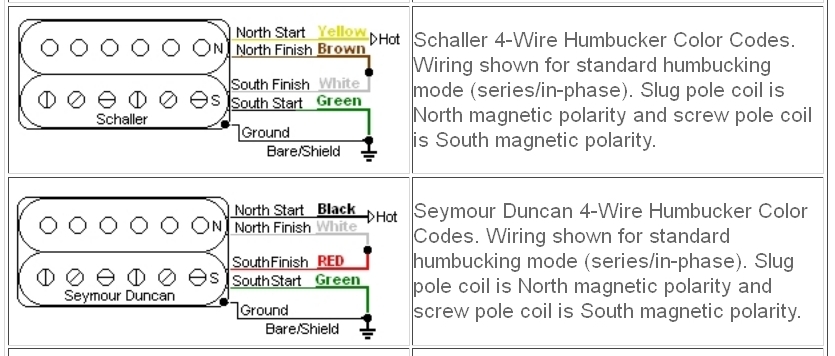

mars_hall Posted September 27, 2013 Posted September 27, 2013 Probably just wanting the color code. To tap a Schaller connect White/Brown to ground for the single coil. Have the switch open for humbucker. I'll get a schematic up in a bit
big bob Posted September 27, 2013 Posted September 27, 2013 Do you have dan erlewines book http://www.amazon.com/The-Guitar-Player-Repair-Guide/dp/0879309210 Has a great section on coil taps.
Millennium Maestro Posted September 27, 2013 Posted September 27, 2013 The white and brown will go to the middle terminal on the push/pull pot, the bottom row of terminals will be grounded to the grounded prong on the pot which will also ground the side or top of the pot. Green and bare wires go to ground Yellow wire goes to hot terminal on pot.
58super Posted September 27, 2013 Posted September 27, 2013 Stewart Macdonald colour codes and wiring diagrams under the free information section in color codes.
High Flying Bird Posted September 27, 2013 Author Posted September 27, 2013 Probably just wanting the color code. To tap a Schaller connect White/Brown to ground for the single coil. Have the switch open for humbucker. I'll get a schematic up in a bit Thank you Spock! Man, Mark you pulled me short hairs out of the wringer washer with this one. Exactly what I needed. Ma'am, get this man a Wong Lo Kat.....
