Need help getting a wiring diagram

[Billgelder]

I just got Lance’s (big bob) old H140 (without pickups and Bisby) and I am rewiring with 3 humbuckers, standard 3 way toggle switch, 3 volume pots push-pull, 1 master tone.
Standard bridge/ neck wiring for toggle switch
1st pot, neck volume, push-pull disengages the toggle switch. (pulled out)
2nd pot, middle volume, push-pull engages middle pickup. (pulled out)
3rd pot, bridge pickup volume, push-pull coil taps middle pickup, (pulled out)
4th pot, master tone, with .22 Russian oil in paper capacitor
Middle pickup, Bill Lawrence L-500 lead from 1980 (4 wire)
Bridge and neck pick P-Rails with Triple Shot. I got them from Punk kitty, thanks again Monica.
Thank you in advance for your help.

[Moogolfer]

Do you have any sound clips?

[mars_hall]

Are you wanting someone to draw the schematic? Sounds like you have way more switches than you seek in as much as the triple shots will duplicate the push/pull pots.

[skydog52]

Hope this helps. Couldn't find any 3 hum diagrams.

http://www.seymourduncan.com/support/wiring-diagrams/

[mtpatty]

http://www.guitarelectronics.com/c=cLwtv59Xgi3Wk8I9DCXnsuNhr/category/wiring_resources_guitar_wiring_diagrams.2_pickup_guitar_wiring_diagrams/



this site is very helpful- look around to see if you can find what you want

[tonedeaf]

The Duncan site has many diagrams, but this might be beyond what the publish.

[Steiner]

Just go for it! That's how discoveries are made...

[DetroitBlues]

I think I'd wire it up where the middle pup had it own volume control so that you can blend it in with the other pickups regardless of how you have them selected.

[PunkKitty]

Bill, this is all I can find for 3 pickup wiring. They will draw custom diagrams for you on request. http://www.guitarelectronics.com/category/wiring_resources_guitar_wiring_diagrams.3_pickup_guitar_wiring_diagrams/

[Billgelder]

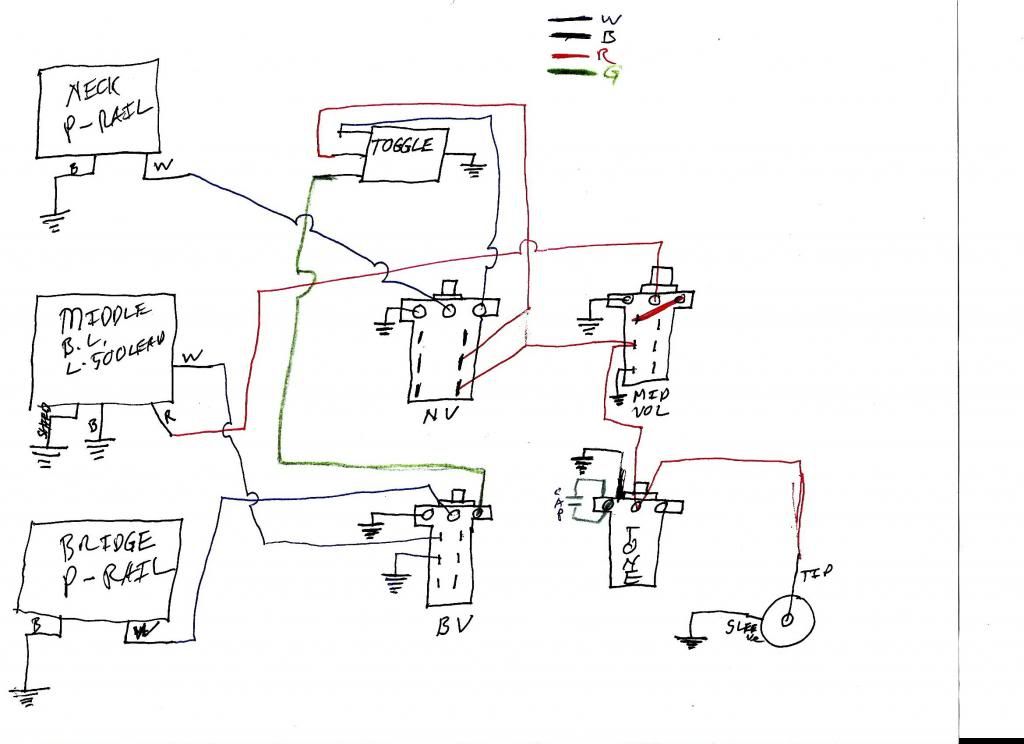

I sent Seymour Duncan an e-mail, hopefully they will reply. In the meantime I combined some wiring schematics I found on line, and came up with this.

[big bob]

You have officially failed the art test. You may not attend the school of drawing. Now go home.

[DetroitBlues]

I sent Seymour Duncan an e-mail, hopefully they will reply. In the meantime I combined some wiring schematics I found on line, and came up with this.

Very close to what I was thinking...

[Billgelder]

I am home,

I am a Biologist, Art school is for people who can't pass Algebra.

[SouthpawGuy]

How about getting a third triple shot mounting ring for the middle pickup, then as DB suggested have a master volume and tone for neck and bridge, with the other volume and tone dedicated to the middle pickup.
