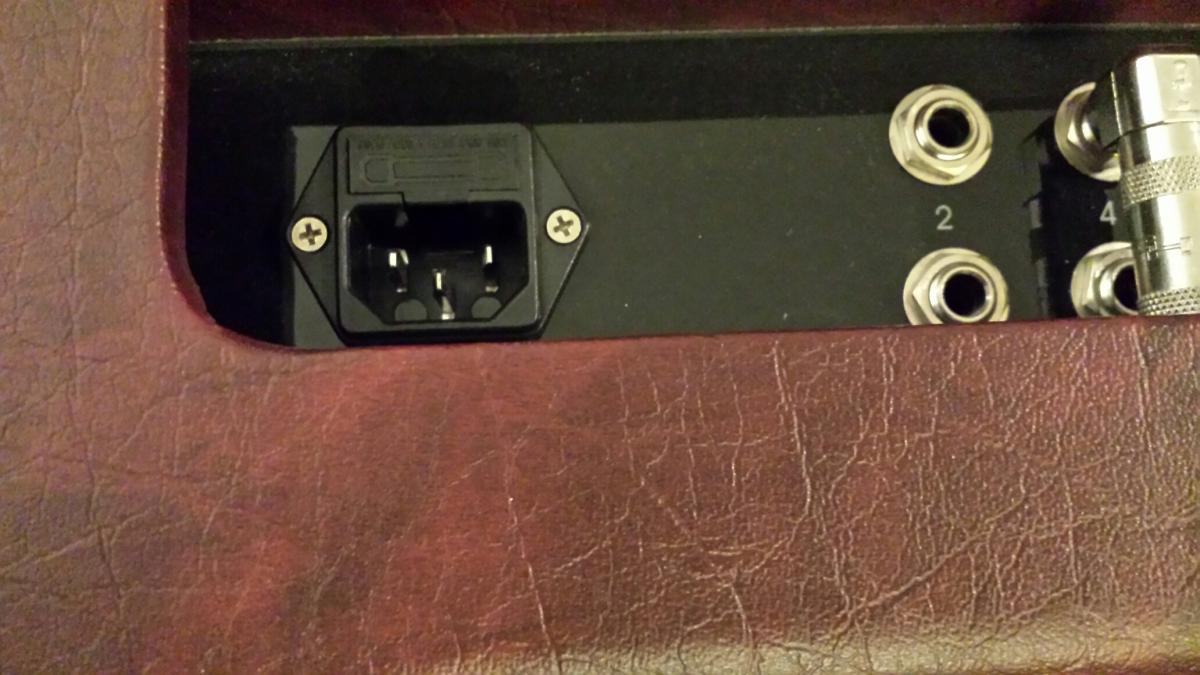

Gitfiddler Posted December 6, 2014 Share Posted December 6, 2014 Clicked on the standby switch on the Heritage Patriot this evening and left the room to let her warm up a bit. I came back and the power light was not lit. Hmmm. Switched the power on...but nothing. Swapped out the power cord. Nothing. It could be a blown rectifier or power tube, but need to replace the fuse first. Went to check the 3 amp fuse encased adjacent to the power cord...Can't access it. Arrghh! How do you get to the fuse on these amps?? Link to comment Share on other sites More sharing options...
skydog52 Posted December 6, 2014 Share Posted December 6, 2014 Clicked on the standby switch on the Heritage Patriot this evening and left the room to let her warm up a bit. I came back and the power light was not lit. Hmmm. Switched the power on...but nothing. Swapped out the power cord. Nothing. It could be a blown rectifier or power tube, but need to replace the fuse first. Went to check the 3 amp fuse encased adjacent to the power cord...Can't access it. Arrghh! How do you get to the fuse on these amps?? Heritage Patriot Fuse.jpeg Heritage Patriot rear view.jpg Arrrghh! is right Tim. Looks like a weekend project. Good luck. Link to comment Share on other sites More sharing options...
212Mavguy Posted December 6, 2014 Share Posted December 6, 2014 Looks like you need to take the chassis out of the cabinet. No bid deal most of the time. Sometimes if there is shielding foil attached to the cab, a little lip might flip up during removal and make reinstallation a bit more difficult if you forgot to press it down flat before stuffing the chassis back into the cab. On some combos the chassis hangs up on the speaker, or just barely clears. Remove the speaker(s) first if that's the case. Make notes on which way the reverb cables go if there are cables to remove. Most of my amps get taken out of their cabinets when I want to work on them, especially to bias or for convenience while tube rolling. I often tape a spare fuse somewhere safe inside the cab if it is a gigging amp. Good luck. Link to comment Share on other sites More sharing options...
MartyGrass Posted December 6, 2014 Share Posted December 6, 2014 Good question. I've never had the need to change a fuse. Ever. Link to comment Share on other sites More sharing options...
brentrocks Posted December 6, 2014 Share Posted December 6, 2014 there is a clip inside the power cord receptacle. I remember doing this on my Colonial you may have to take off the back cover, but shouldn't have to pull the chassis Link to comment Share on other sites More sharing options...
Steiner Posted December 6, 2014 Share Posted December 6, 2014 Good thing you didn't let the smoke out. The fuse is directly above the power cord plug. You have a really good shot of it in your first photograph. Heritage amps are built like tanks. I'd lay money on it being either fuse or rectumfrier. Link to comment Share on other sites More sharing options...

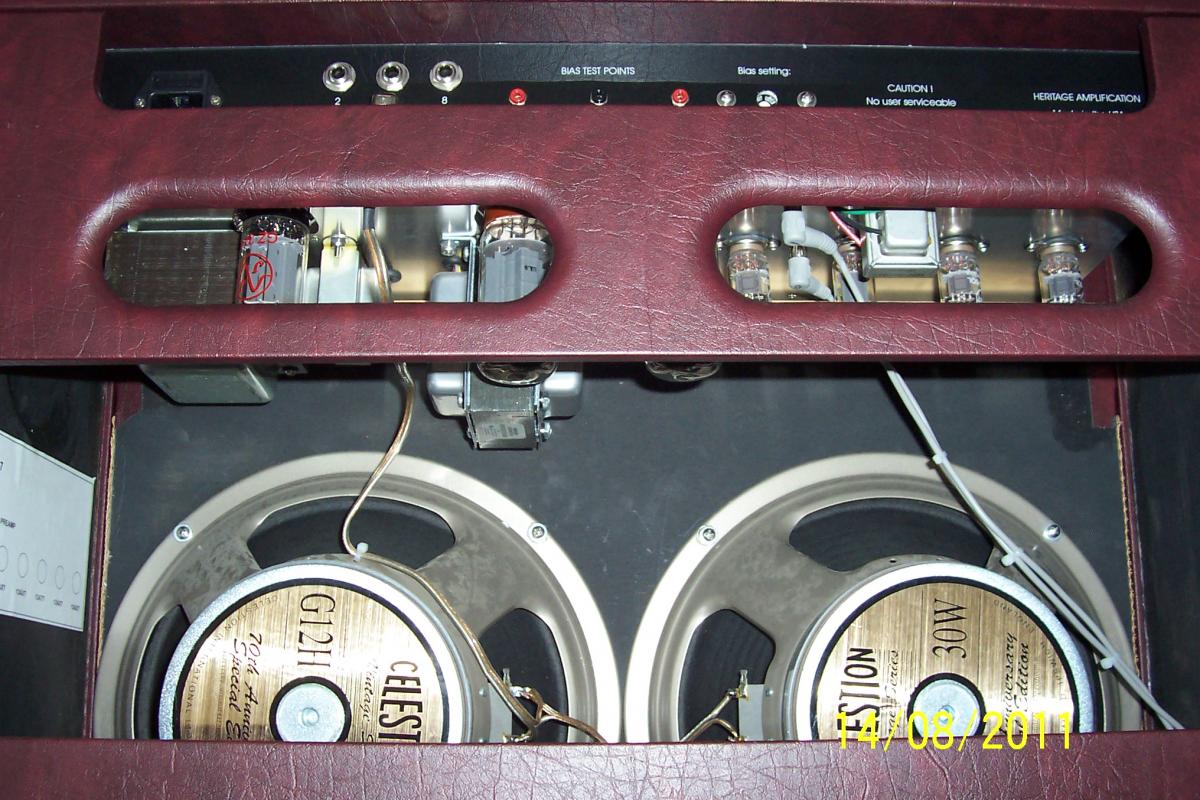

MartyGrass Posted December 6, 2014 Share Posted December 6, 2014 You must have a different version of The Patriot. Here's some shots of my amp's private parts. Link to comment Share on other sites More sharing options...
Gitfiddler Posted December 6, 2014 Author Share Posted December 6, 2014 there is a clip inside the power cord receptacle. I remember doing this on my Colonial you may have to take off the back cover, but shouldn't have to pull the chassis I don't want to risk breaking the tiny plastic fuse access door on the power cord receptacle. How did you get to the fuse? Did you unscrew the entire power cord housing? Dumb question, but don't want to snap off the plastic piece. Heritage Patriot Fuse.jpeg Link to comment Share on other sites More sharing options...
DC Ron Posted December 6, 2014 Share Posted December 6, 2014 My Lobo did the same thing but the fuse wasn't blown. Turned out to be a gimpy on-off switch. It works fine 99+ out of a 100 times though so haven't replaced it. Know I was lucky, hope yours turns out to be manageable. These are great amps...Good luck! Link to comment Share on other sites More sharing options...
rjsanders Posted December 6, 2014 Share Posted December 6, 2014 hope it's simple. sounds like it, but know it can be maddening. as PaulC said about his amps in TGP a month ago, "if you are having a problem with an amp I designed for them I will do all I can to make it right. Please contact me at 615-896-8555" Link to comment Share on other sites More sharing options...

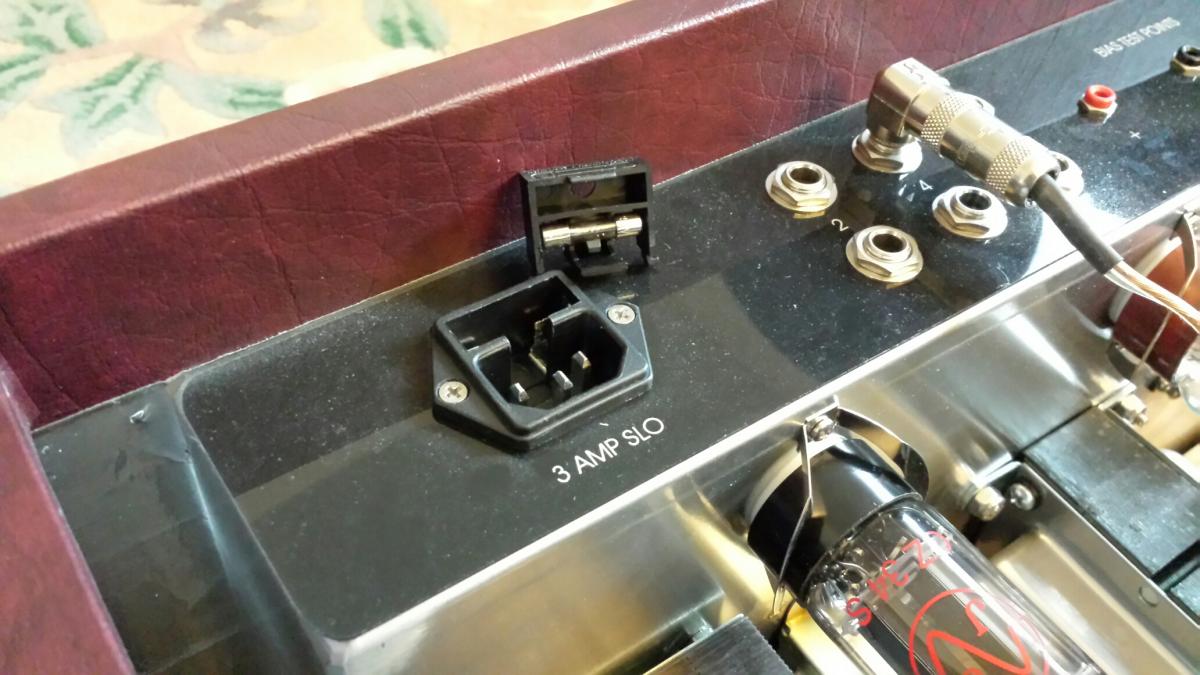

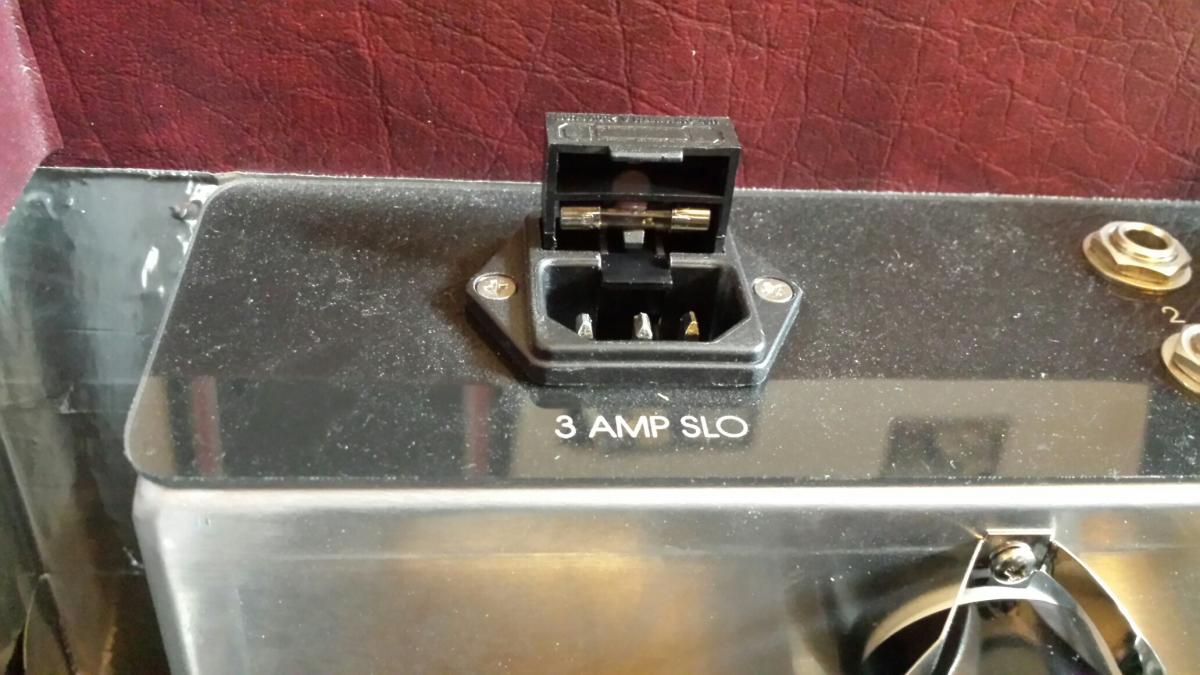

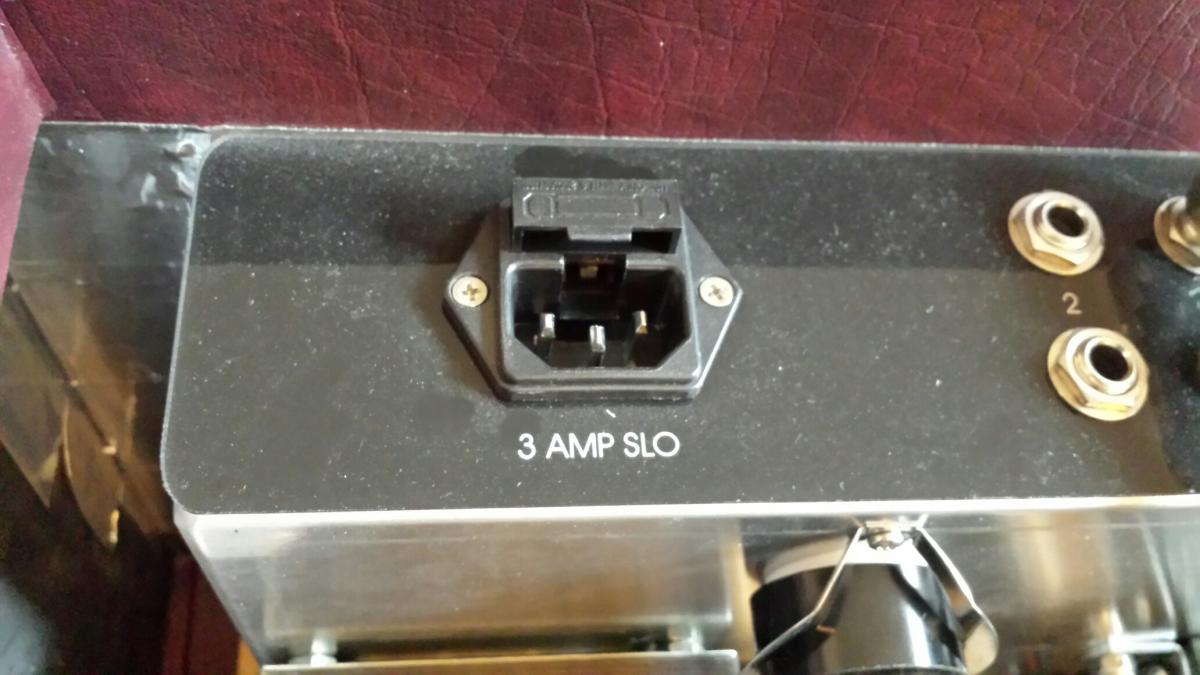

Gitfiddler Posted December 7, 2014 Author Share Posted December 7, 2014 "IT'S ALIVE!!" This turned out to be relatively easy, pain free, and ONLY a blown fuse issue! It took 4 steps. I removed the back of the amp, then CAREFULLY slipped a tiny screwdriver under the lip of the fuse cover. After a trip to the local Radio Shack for 2 packages of 3 amp SloBlo fuses, the deed was done!! It sounds GREAT again!! Step #1: Step #2 Step #3 Step #4 Link to comment Share on other sites More sharing options...
Gitfiddler Posted December 7, 2014 Author Share Posted December 7, 2014 "IT'S ALIVE!!" This turned out to be relatively easy, pain free, and ONLY a blown fuse issue! It took 4 steps. I removed the back of the amp, then CAREFULLY slipped a tiny screwdriver under the lip of the fuse cover. After a trip to the local Radio Shack for 2 packages of 3 amp SloBlo fuses, the deed was done!! It sounds GREAT again!! Step #1: Step #2 Step #3 Step #4 Link to comment Share on other sites More sharing options...
rjsanders Posted December 7, 2014 Share Posted December 7, 2014 Link to comment Share on other sites More sharing options...
bolero Posted December 7, 2014 Share Posted December 7, 2014 I wonder why the fuse blew? if it blows again, better get it checked out! Link to comment Share on other sites More sharing options...
rjsanders Posted December 7, 2014 Share Posted December 7, 2014 I wonder why the fuse blew? if it blows again, better get it checked out! same wonderment here. could be worn-out fuse, but i recall a past case (BFSuperReverb?) where i kept blowing fuses and cause was (IIRC) a blown screen resistor further up the line...easy fix for my tech but i don't know a screen resistor from a reen scresistor... Link to comment Share on other sites More sharing options...
Gitfiddler Posted December 7, 2014 Author Share Posted December 7, 2014 I'm also concerned about a gremlin in the amp. It's on and sounding great so far. Hopefully it was just an overworked fuse. I bought the amp used, so who knows what its been through over the years. She's happy now!! Link to comment Share on other sites More sharing options...
Gitfiddler Posted December 7, 2014 Author Share Posted December 7, 2014 Sorry, double post. sorry, double post. Link to comment Share on other sites More sharing options...
schundog Posted December 7, 2014 Share Posted December 7, 2014 Glad to hear it was an easy fix! Link to comment Share on other sites More sharing options...
TalismanRich Posted December 7, 2014 Share Posted December 7, 2014 My Patriot never blew a fuse, but had a horrible buzz, like a dead short on the input.. Turned out to be one of the electrolytic caps on the power tubes feedback circuit. Got it replaced, and replaced the 6L6s as well. Its back to running fine now. Link to comment Share on other sites More sharing options...
Fernando Posted December 7, 2014 Share Posted December 7, 2014 Sounds like someone wasn't able to vent their frustration; that's what blew the fifty amp fuse. Link to comment Share on other sites More sharing options...
smokedtires Posted December 9, 2014 Share Posted December 9, 2014 Always great when we can fix something ourselves. Beautiful amp, hope she treats you well. Link to comment Share on other sites More sharing options...
Gitfiddler Posted December 9, 2014 Author Share Posted December 9, 2014 Spoke too soon...blew another fuse last night. (Sigh!) I unplugged the Patriot, covered it with its matching red amp cover and turned the light off in the music room. Simple or complex...It'll have to wait until after the holidays to further diagnose or fix. Too much on my plate at the moment. Link to comment Share on other sites More sharing options...
Guitarbean Posted December 11, 2014 Share Posted December 11, 2014 Take it to King Amplification in Sunnyvale Link to comment Share on other sites More sharing options...
Gitfiddler Posted December 11, 2014 Author Share Posted December 11, 2014 Take it to King Amplification in Sunnyvale They've got mixed reviews, and are expensive. But I might have to. Crap! Link to comment Share on other sites More sharing options...
kzoolou Posted December 14, 2014 Share Posted December 14, 2014 Spoke too soon...blew another fuse last night. (Sigh!) I unplugged the Patriot, covered it with its matching red amp cover and turned the light off in the music room. Simple or complex...It'll have to wait until after the holidays to further diagnose or fix. Too much on my plate at the moment. Link to comment Share on other sites More sharing options...
